An approach to Semantic Modeling

This post was first published at metaphact’s blog in 2024 under the title How to approach semantic modeling: Perspectives from a metaphacts friend. I thought I would re-post it here for new readers, and also provide with some reflections at the end. Have my way of approaching semantic modeling changed in the past two years?

Bear in mind, this article describes starting a modeling process from scratch and from a consultant’s point of view.

---

When attending The Knowledge Graph Conference 2024, I was on a panel with Peter Hasse, founder and Chief Scientific Officer at metaphacts, where we discussed ontologies and how to model them. I was then asked by metaphacts to contribute to their blog, elaborating on my methodology for semantic modeling. Here, I will focus on the steps I usually follow when working with my clients in creating a wonder of semantic knowledge graphs.

It is worth mentioning that I don’t follow one specific methodology for ontology modeling, but build on various approaches, as the maturity and need of my clients vary a lot. This blog post will describe the general steps and building blocks of my daily work, however, my colleagues in Capgemini¹ might have different approaches.

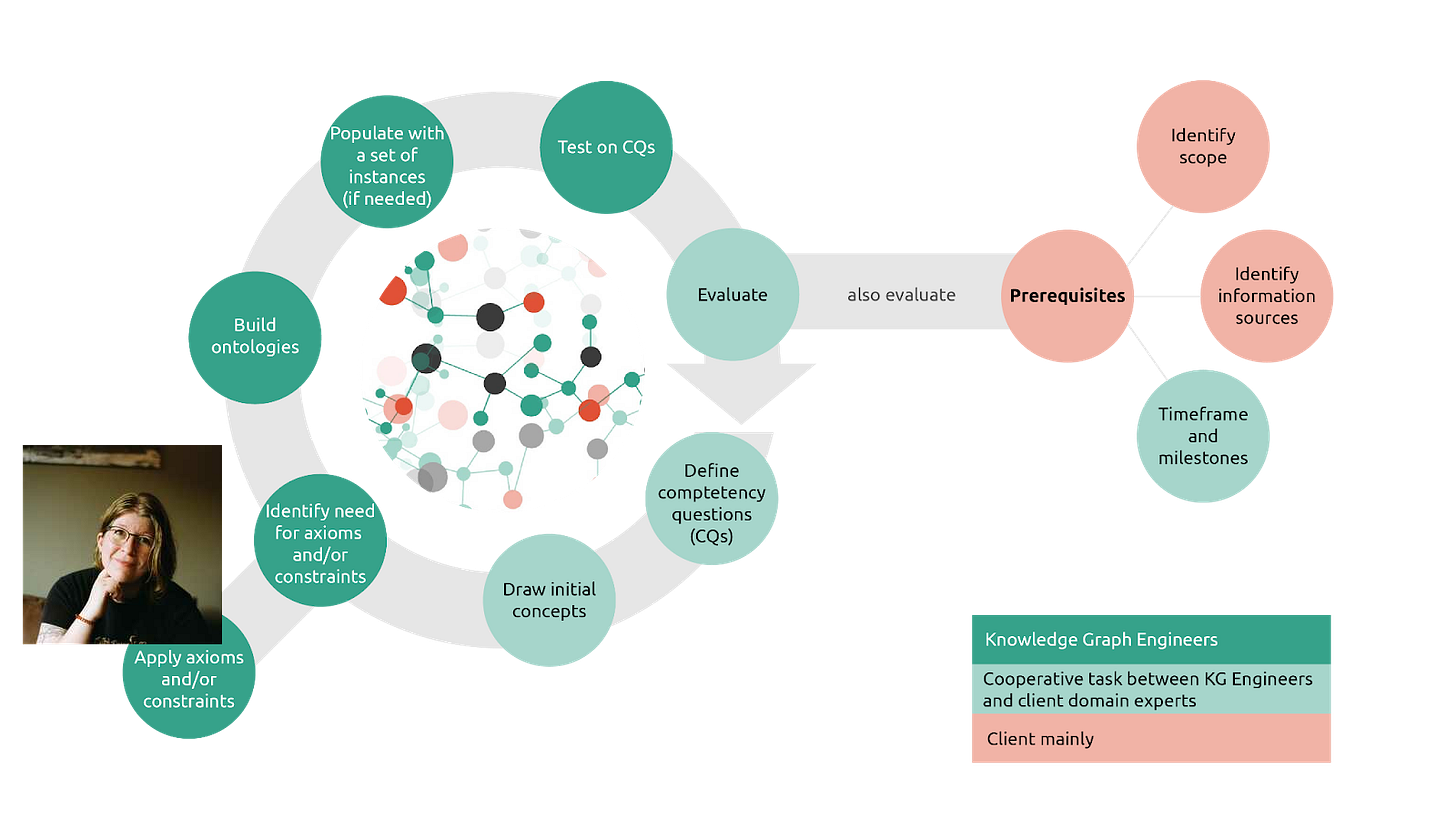

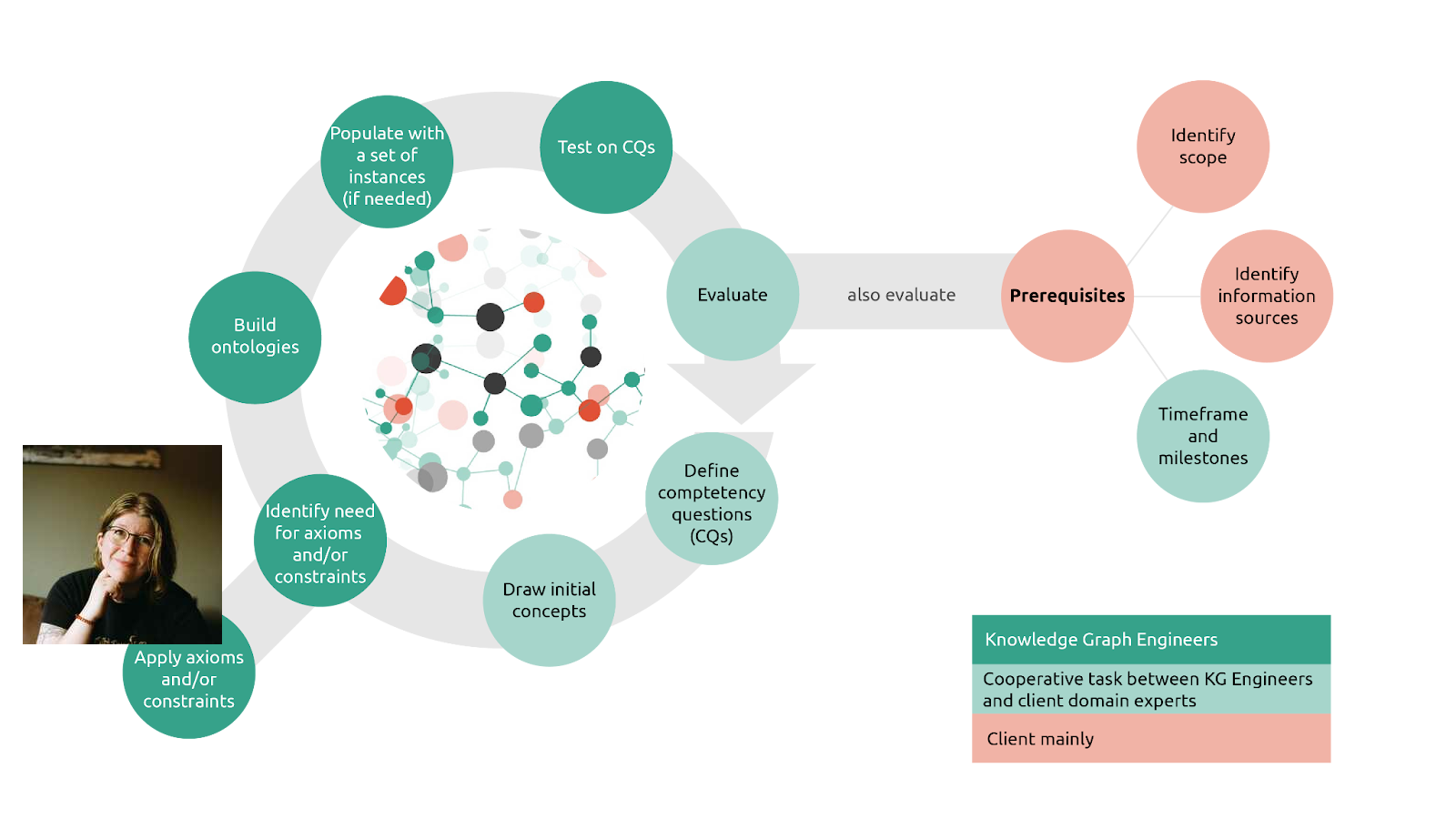

Illustration of a semantic modeling flow, made by the author.

Prerequisites: before you start semantic modeling

Before you get started with modeling the actual information, there are a few things you must first discover. These steps are done either together with the client, or the client themselves will provide this information. At this point, I am assuming that the use case and/or user story already is in place.

1. Identify the scope

2. Identify information sources

3. Timeframe and milstones

Identify the scope

Your client needs to identify a scope which the knowledge graph will serve. It is its own science to discover that small (enough) scope with high (enough) value to show the wonders of what knowledge graphs can do for their use case(s). However, since knowledge graphs are a dynamic model, with easy and almost painless scalability, the scope to begin with can be very small.

Imagine that the use case is creating a portal for CVs and projects within a consultancy firm, a starting scope could then be all employees and projects from one particular department, from which you can then add more departments later on. During this phase, you also need to start thinking about granularity. Knowledge graphs are atomic breakdown of data, but what level of granularity do you really need for your particular project? Keep it simple. This question of granularity will be repeated several times through the development of an ontology.

Identify information sources

Next, one needs to discover what information sources are there, and what they look like. Do we have access to the information? Are there third-party sources to take into account? Information sources vary a lot. They can be Word files, Excel spreadsheets, SQL databases, data streams, PDF files, JSON APIs, it can be basically whatever type of file. As a knowledge engineer, you must be prepared for unstructured data, messy data, chaotic data and data with low quality in any shape or form. Our job is to parse, transform and create order and integrity in the client’s data.

Timeframe and milestones

Together with your client, plan the desired milestones and plot them along the project’s timeline. Ontology modeling is iterative work, and there is a need for close cooperation with client domain experts in order to establish that semantic knowledge layer, which an ontology serves as. The time available must be taken into account when deciding on a scope too, a Minimal Viable Product (MVP) or Proof of Concept (PoC) of 8-20 weeks will have different milestones and phases than a full-scale project.

Initial activities together with the client

Before you are on your own, diving into your favourite modeling tool and mapping all that crazy data, there are a few activities you need to do together with your client. These activities will help and guide you a lot along the way.

Competency Questions

When the prerequisites are in place, one can start defining a list of competency questions. These are natural language questions that you want to answer using the ontology. They usually translate well into SPARQL queries for testing the knowledge graph later. A list of competency questions will serve as a useful guide through the modeling process and is immensely helpful in testing the knowledge graph.

Going back to our previous example, some competency questions can be: “How many Azure projects has Lisa worked on for the past three years?”, “How many PRINCE2 certified senior architects do we have?”, “We need KPI statistics of all AWS related projects”, and so on. The more, the better!

Finding these questions is an activity to do together with your client.

Draw initial concepts

The author’s tools of trade.

Here comes one of my favourite activities that comes with this job — picking my client’s brain for knowledge, and drawing them on paper together! I typically shape up this activity as a 2-4 hour workshop, and the tools of the trade are A3 sheets of paper and box of colouring pencils.

We start with the use case. What does it contain? What concepts are there, and what do they mean? Does this concept have a relation to other concepts? And does it contain “sub-concepts”?

Your job is to ask those silly questions, to get the client’s knowledge out of their heads and down on paper. If it’s a bit tricky to get started, you can ask your client to write down relevant words on Post-its, group them into categories and then start drawing.

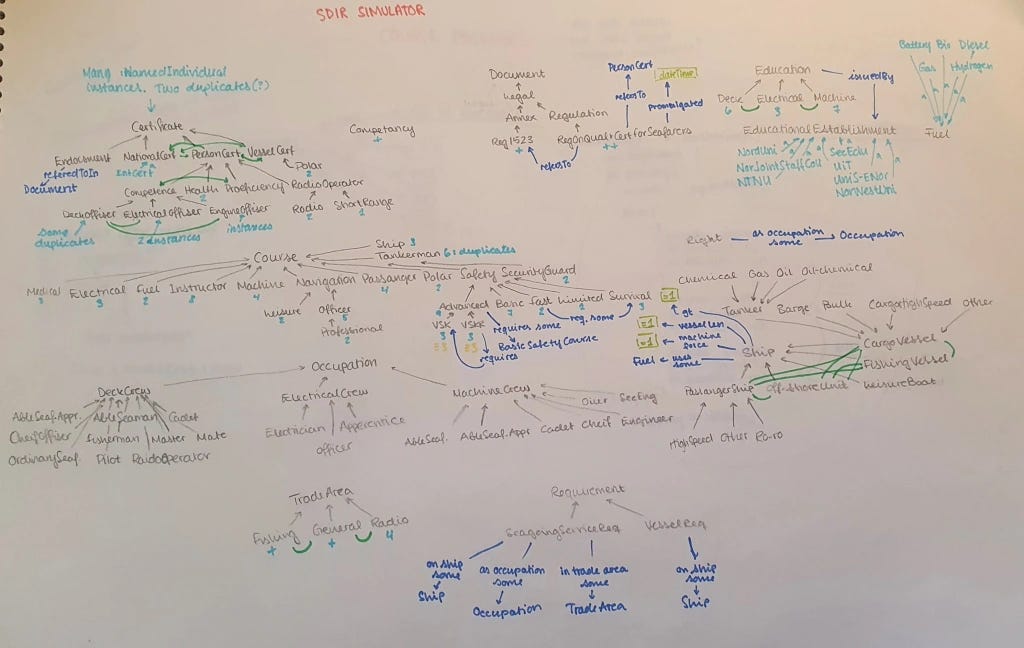

Some maritime knowledge on paper.

Start your own modeling process

Now it is time to get started producing with modeling. At this point you have several useful tools at your hand; the drawings, competency questions, and information sources.

There are also several different approaches to how you will start this phase of the work.

• It might be that some of the information sources contain machine-readable schemas or similar that you want to parse to RDF in order to get a skeleton to start with.

• It might be that your client is already familiar with RDF and wants to contribute to the work. In that case, setting up a collaborative infrastructure is important. As a knowledge engineer, you need to know the vendor landscape well to make the best recommendations of tooling and databases for your client to serve their needs.

• It might be that you have pretty much nothing to go off on, other than the clues you have already gathered through the prerequisites and the drawing workshop.

In any case, an ontology will take shape.

Considering already established ontologies

There are a lot of available and well-maintained ontologies on the web, waiting for you to reuse their knowledge. Are there any external ontologies or vocabularies you can use for your client use case?

I work a lot with clients in the public sector. In Norway, we have our National Data Catalogue, which is based on DCAT-AP-NO, SKOS-AP-NO, and surrounding RDF specifications. For most of my projects, I would reuse RDF resources from them to describe my client’s knowledge.

Discovering the need for axioms and/or constraints

In some cases, there might be a case for reasoning capabilities. The ones I stumble across the most are inferring classification of entities, but in a few cases, I have also stumbled across inferring permutations or combinations of entities based on various metrics. If you do need to describe axioms and restrictions for reasoning purposes, make sure you have a tool that allows you to do so. Even though I don’t always have the need for axioms in the ontology, I tent to leverage RDFS inference for all my ontologies. This is to ensure that the semantics of the ontology match what is expected for my instance data, and that I don’t have any surprise results coming from the way the model is constructed.

The need for constraints as SHACL shapes, however, is a way more applicant topic these days. Being able to validate data under a closed-world assumption is often much closer to real-life cases than living within an open-world assumption, in my experience. But I still model the ontology and shapes separately, often the ontology first, and then reuse those RDF resources into the SHACL shape descriptions.

Example of classification axioms for hydropower plants, and then classifying individuals to their proper group by max output.

Populate with instances

For most use cases, the client wants to use the ontology to drive data-driven decision-making, analytics and insight into their data. In those cases, a need for populating a knowledge graph with instance data (individuals) becomes apparent.

In this case, you do not want to add those manually. There are many mapping tools available on the market, or you can use programming frameworks for RDF to map the individuals according to the ontology.

Back to start

Once the graph contains individuals and their attributes and relationships, together with the knowledge layer—the ontology—you have a knowledge graph. And you can start testing and evaluating according to the established competency questions.

As mentioned, most competency questions are easily translatable into SPARQL queries, which makes it easy to answer them. Bring your answers, preferably visualised through a knowledge graph visualisation tool, back to your client and evaluate the quality and accuracy together. Did we find what we wanted? Is there new insight gained? Did we miss something? Are there inconsistencies in client data?

---

Reflections with 2026 goggles on

It was fun to read this piece again, and to realise that my methodology is quite consistent. I still work as described in this article, but my tool stack has changed and improved. The tooling I work with these days are the following;

• WebProtégé for collaborative modeling

• Protégé and VS Code for working local, deep down in the grit

• maplib for mapping instance data, running SPARQL-queries, reasoning and validation

• Claude for visualisations and creating html documentation

One thing I did not mention, tho, was how I identify the difference between a class and a SKOS Concept. Because, in some cases, you want to create a little taxonomy side quest. Especially where enumerations happens. Maybe I’ll write another piece on exactly this.

Other improvements since this article was first published by metaphacts is that I’ve changed employment (not longer in big corp.) and my English has improved a bit, haha!

Anyways, I hope you enjoyed this article. Having a look into how I work with semantic modeling.

---

About the author

Ontologist who code in C, Java and Python. Been a knowledge graph practitioner for over a decade, and had numerous talks on the topic around the globe. Knowledge Graph Specialist at Data Treehouse. Author of SHACL for the Practitioner and awarded amongst Norway’s Top 50 Women in Tech 2024.

1. Two years ago, I was Knowledge Graph Lead at Capgemini.
